PhenomSourceCalculator
This example shows how to create a SASE pulse with a phenomenological model described in this paper by Trey Guest et al.: https://doi.org/10.1107/S2052252523008242
[1]:
from SimExLite.SourceCalculators import PhenomSourceCalculator
import h5py as h5
from matplotlib import pyplot as plt
from wpg.wpg_uti_wf import get_intensity_on_axis
import numpy as np
[2]:
def analytical_pulse_width(photon_energy):
"""
Estimate analytical_pulse_width (FWHM) from radiation energy (assumes symmetrical beam)
:param photon_energy: radiation energy [eV]
:return sig: Radiation pulse width [m]
"""
sig = np.log((7.4e03/(photon_energy/1e03)))*6
return sig/1e6
def analytical_pulse_divergence(photon_energy):
"""
Estimate of analytical_pulse_divergence (half-angle) from radiation energy
:param photon_energy: radiation energy [eV]
:return dtheta: pulse divergence [rad]
"""
return ((14.1)/((photon_energy/1e03)**0.75)) / 1e06
Construct Calculator
[3]:
psc = PhenomSourceCalculator("psc",)
psc.parameters['spectral_bandwidth'] = 1e-12
psc.parameters
[3]:
- Parameters object -
range_x [-0.0002 0.0002] [meter] The spacial mesh range in x direction. [start, end]
num_x 512 Number of mesh points in x direction.
range_y [-0.0002 0.0002] [meter] The spacial mesh range in y direction. [start, end]
num_y 512 Number of mesh points in y direction.
range_t [-2.5e-14 2.5e-14] [second] The temporal range. [start, end]
num_t 250 Number of mesh points in t direction.
photon_energy 10000.0 [electron_volt] The photon energy of X-ray beam.
pulse_energy 0.0001 [joule] Total energy of the pulse
pulse_duration 1.5e-14 [second] The length of a pulse
spectral_bandwidth 1e-12 The bandwith of the beam spectrum
sigma 5e-05 pulse width
div 0.0025 pulse divergence
[4]:
# Set pulse width and pulse divergence according to photon_energy
psc.parameters["sigma"] = analytical_pulse_width(psc.parameters["photon_energy"].value)
psc.parameters["div"] = analytical_pulse_divergence(psc.parameters["photon_energy"].value)
psc.parameters
[4]:
- Parameters object -
range_x [-0.0002 0.0002] [meter] The spacial mesh range in x direction. [start, end]
num_x 512 Number of mesh points in x direction.
range_y [-0.0002 0.0002] [meter] The spacial mesh range in y direction. [start, end]
num_y 512 Number of mesh points in y direction.
range_t [-2.5e-14 2.5e-14] [second] The temporal range. [start, end]
num_t 250 Number of mesh points in t direction.
photon_energy 10000.0 [electron_volt] The photon energy of X-ray beam.
pulse_energy 0.0001 [joule] Total energy of the pulse
pulse_duration 1.5e-14 [second] The length of a pulse
spectral_bandwidth 1e-12 The bandwith of the beam spectrum
sigma 3.963990111718929e-05 pulse width
div 2.507373968154881e-06 pulse divergence
[5]:
output = psc.backengine()
print(output)
Data collection:
key - mapping
Phenom_wavefront - <class 'SimExLite.WavefrontData.WPGFormat.WPGFormat'>: PhenomSourceCalculator/wavefront.h5
Get energy spectrum and temporal profile from the output
[6]:
from wpg.wavefront import Wavefront
from wpg.wpg_uti_wf import plot_intensity_map,plot_t_wf, plot_wf, integral_intensity, get_intensity_on_axis
from wpg.srw import srwlpy
wfr = Wavefront()
wfr.load_hdf5(output["Phenom_wavefront"].filename)
# srwlpy.SetRepresElecField(wfr._srwl_wf, 'time')
[7]:
# Intensity in frequency domain
srwlpy.SetRepresElecField(wfr._srwl_wf, 'frequency')
data = get_intensity_on_axis(wfr)
fig, ax = plt.subplots()
ax.plot(data[:,0], data[:,1])
ax.set_xlabel("Energy (eV)")
ax.set_ylabel("Intensity (a.u.)")
fname = "spectrum.txt"
np.savetxt(fname, data, header = "energy(eV) intensity")
[8]:

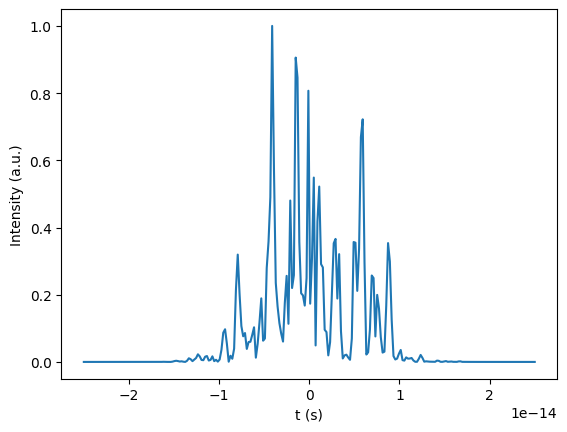

# Intensity in time domain
srwlpy.SetRepresElecField(wfr._srwl_wf, 'time')
[t, intensity] = get_intensity_on_axis(wfr).T
data = get_intensity_on_axis(wfr)
after_shift = np.fft.fftshift(data[:,1])
fig, ax = plt.subplots()
ax.plot(data[:,0], after_shift)
ax.set_xlabel("t (s)")
ax.set_ylabel("Intensity (a.u.)")
fname = "I_t.txt"
np.savetxt(fname, np.vstack([data[:,0], after_shift]).T, header = "t(s) intensity")
